260PCS Waterproof Heat Shrink Solder Seal Sleeve Butt Terminals Wire Connectors

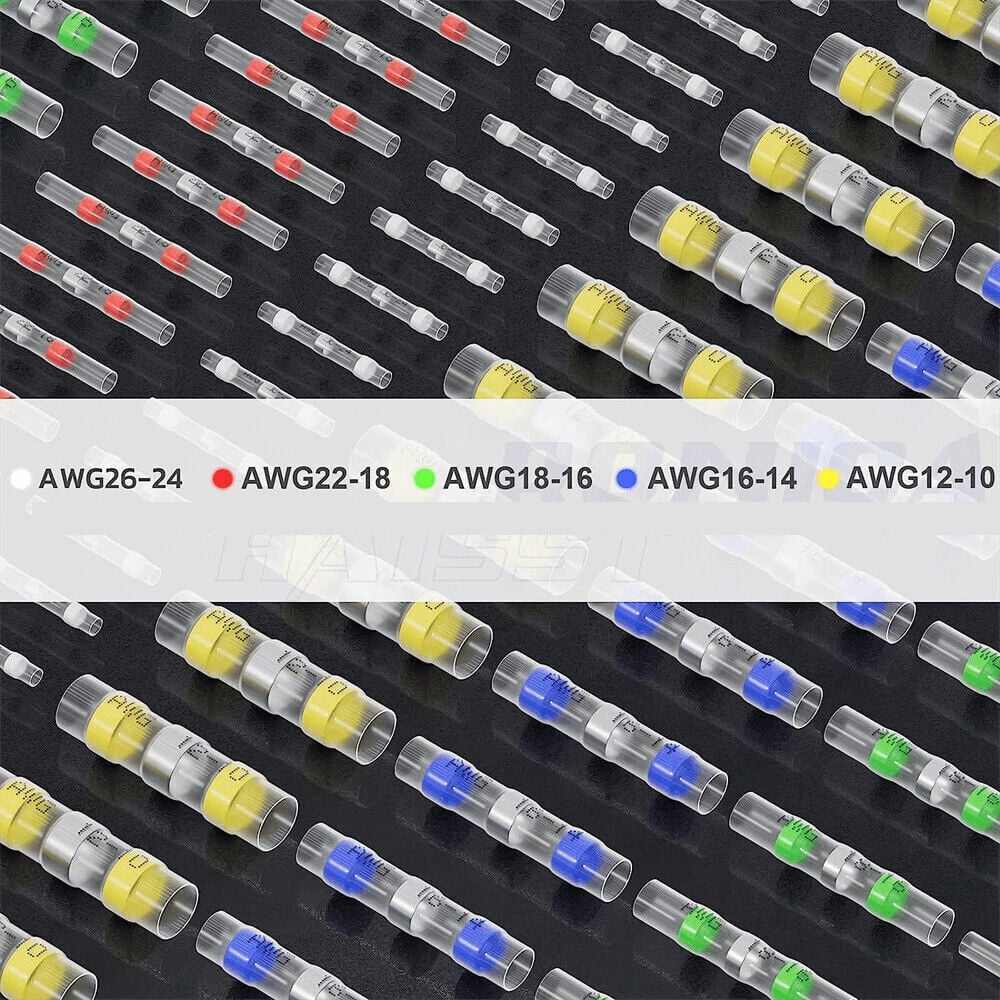

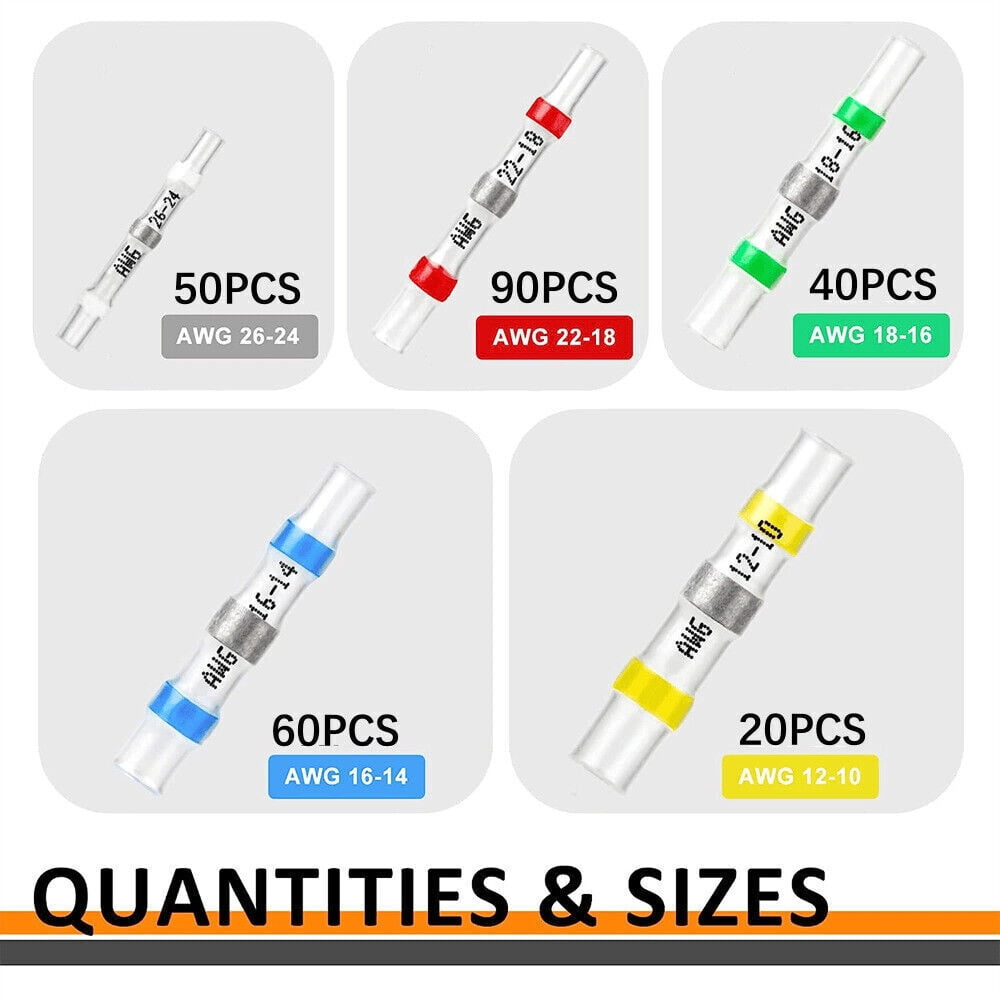

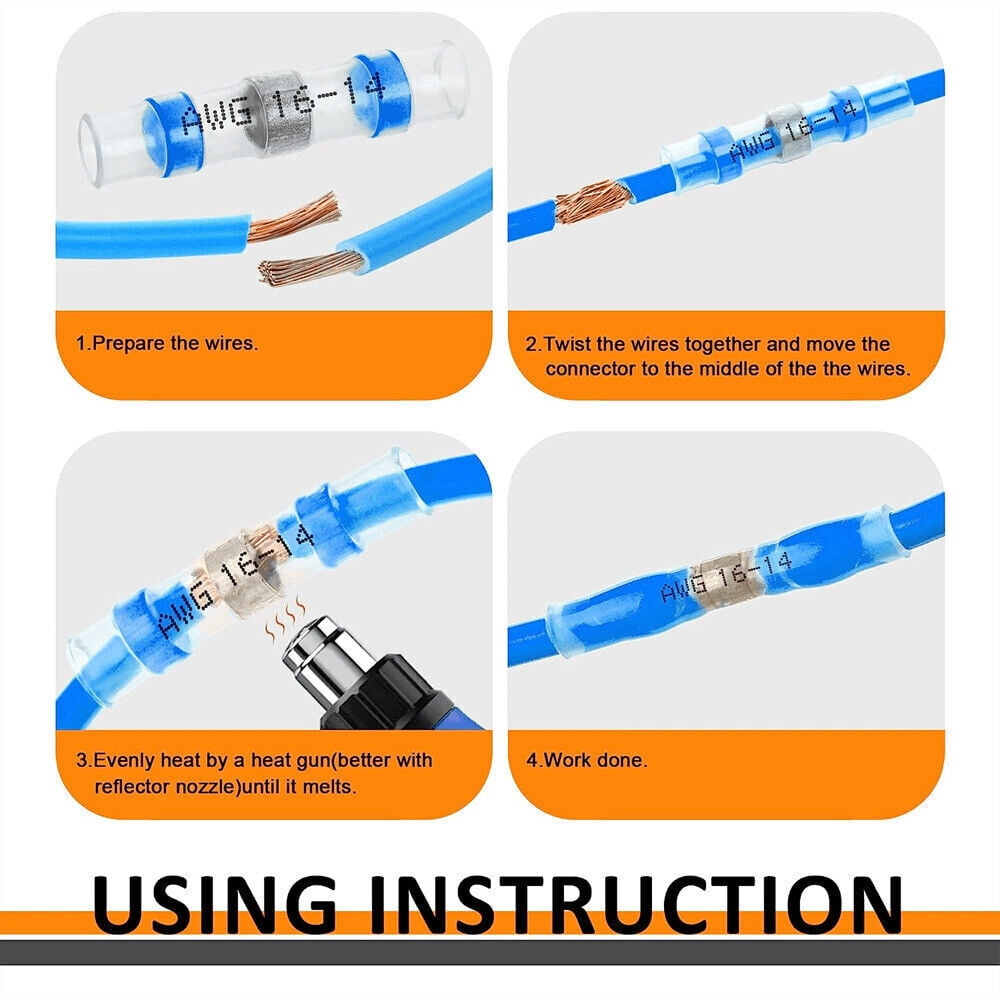

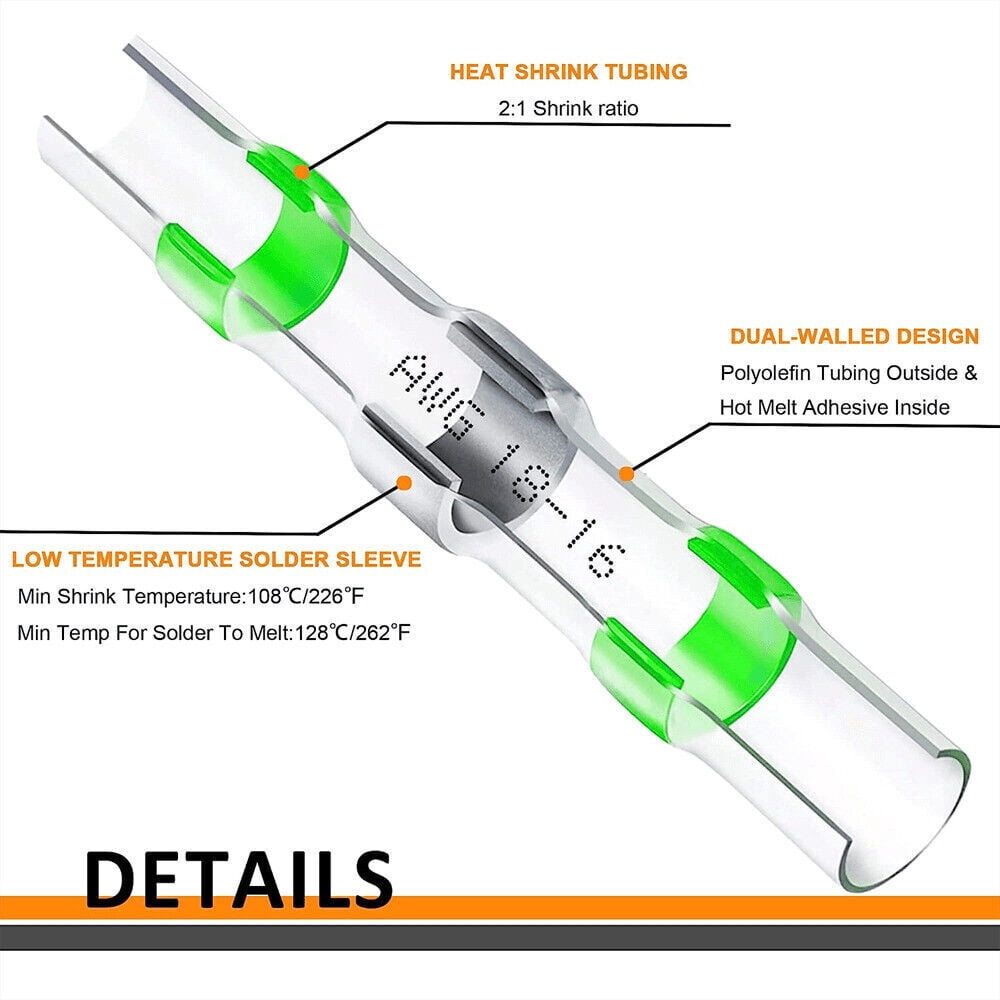

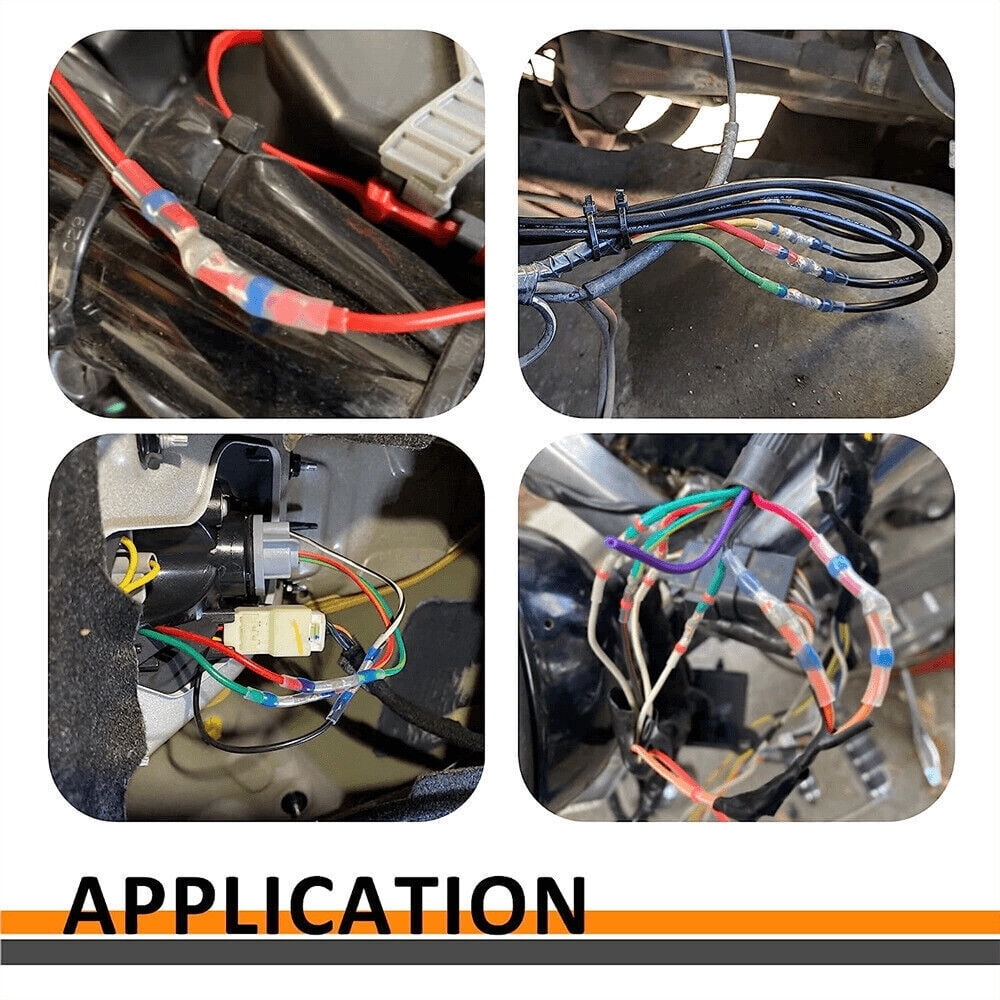

<br>Features: <br><br><br><br>An easy one step connection of wires.<br><br><br><br>Soldered, insulated and sealed can be ideal.<br><br><br><br>Use in marine and automobile applications.<br><br><br><br>Melt adhesive in inside solder and seal and with advanced waterproof function.<br><br><br><br>Polyolefin heat shrink butt connectors improved pullout strength.<br><br><br><br>Provide seal, strain relief, cable check and insulation.<br><br><br><br>Technical Specifications: <br><br><br><br>Shrinkage ratio 3:1<br><br><br><br>Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside<br><br><br><br>Color coded connector tubing<br><br><br><br>Heat activated waterproof adhesive<br><br><br><br>Low temperature solder sleeve<br><br><br><br>Minimum shrink temperature: 80°C<br><br><br><br>Minimum temperature for solder to melt: 138°C<br><br><br><br>Sizes and Quantity: <br><br><br><br>20x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0 - 6.0 mm² 12-10AWG <br><br><br><br>60x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5 - 2.5 mm² 16-14AWG <br><br><br><br>90x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5 -1.0 mm² 0.5-1.0AWG <br><br><br><br>50x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25 - 0.34 mm² 26-24AWG <br><br><br><br>40x Green Connectors:Cable cross-section1.0-1.5mm² 18-16AWG <br><br><br><br>Package Included: <br><br><br><br>260PCS Heat Shrink Solder Wire Connectors<br><br><br><br>Note: <br><br><br><br>Please allow 1-5mm errors due to manual measurement.<br><br><br><br>Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
