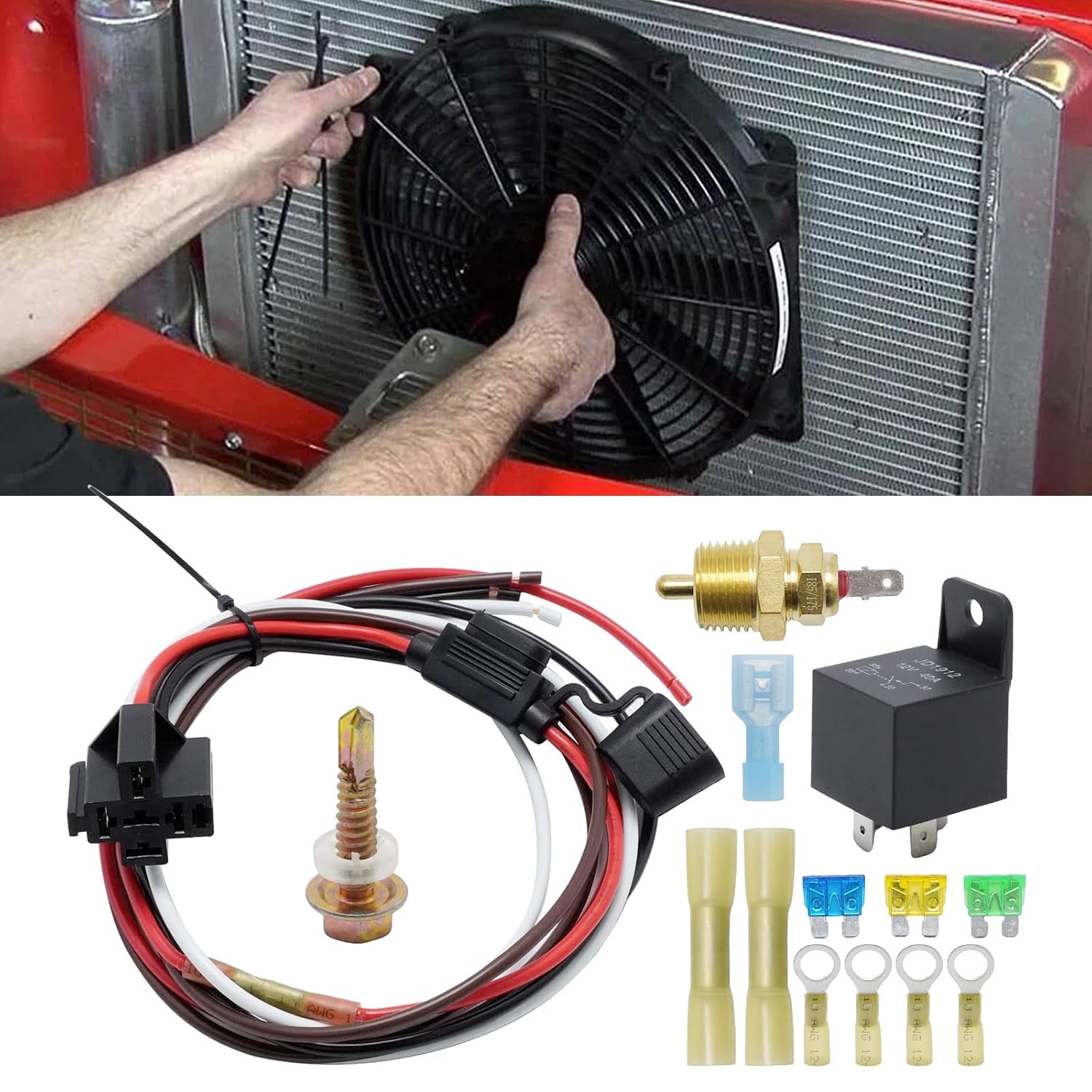

Electric Fan Relay Kit with Thermostat for 10/12/14/16 Inch Cooling Fans, 40A Waterproof Relay, Electric Fan Wiring Kit Includes Wiring Harness & Temperature Switch (185°F On/175°F Off)
Product details
| Management number | 233910764 | Release Date | 2026/06/27 | List Price | US$7.20 | Model Number | 233910764 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Product Name: Electric Fan Wiring Kit Model: Electric Fan Relay Kit Thermostat: Activation Temperature: 185°F (approx. 85°C) Deactivation Temperature: 175°F (approx. 79°C) Temperature Sensor: Thread Size: 3/8 inch Includes Adapter: 1/2 inch Compatibility: Direct fit for 10/12/14/16" electric fans Works with standard 160°F thermostats (higher temps may require replacement) Replacement for common fan relay systems in various vehicle models Package Includes: 1x Wiring Diagram 1x 40A Relay with Wiring Harness 1x Thermostat Switch 185'F On - 175'F Off 1x 3/8" to 1/2" Adapter 1x Spade Connector for Temp Switch (Heat Shrinkable) 1x Inline Waterproof Fuse Holder 1x 15A Fuse (Low Profile Fan) 1x 20A Fuse (Medium Profile Fan) 1x 30A Fuse (High Profile Fan) 4x Ring Terminals (Heat Shrinkable) 2x Wire Connectors (Heat Shrinkable) 1x Mounting Screw
- Precise Temperature Control: The integrated 185°F on/175°F off thermal switch automatically activates your cooling fan when engine heat reaches critical levels, ensuring optimal engine temperature without manual intervention
- Versatile Compatibility: Designed as a direct replacement part, this electric fan relay kit fits 10", 12", 14", and 16" cooling fans. For dual fan setups, simply use two relay kits, providing flexibility for various vehicle configurations
- Engineered for Reliability: Waterproof 40A relay and grounded temperature sensor provide stable performance, while the 30A fused protection prevents electrical overloads
- Comprehensive Kit: This all-in-one electric fan relay kit includes everything you need for installation, such as a 40A relay, wiring harness, temperature switch, adapter, inline waterproof fuse holder, fuses, and connectors, ensuring a hassle-free setup
- User-Friendly Installation: All wires are clearly labeled and color-coded, accompanied by an easy-to-follow wiring diagram: Black wire → Connect to Temperature Switch, Coffee (Brown) wire → Connect to Fan Positive terminal, Red wire → Connect to 12V Positive Battery, Grey wire → Connect to Switched Ignition
| ASIN | B0FQBR99NM |
|---|---|
| Brand Name | ZUDKSUY |
| Part Number | DCJR0051 |
| Contact Type | Normally Open |
| Manufacturer | ZUDKSUY |
| Mounting Type | Chassis Mount |
| Connector Type | Pigtail Connector |
| Current Rating | 40 Amps |
| Contact Material | Copper |
| Included Components | Electric Fan Wiring Kit |
