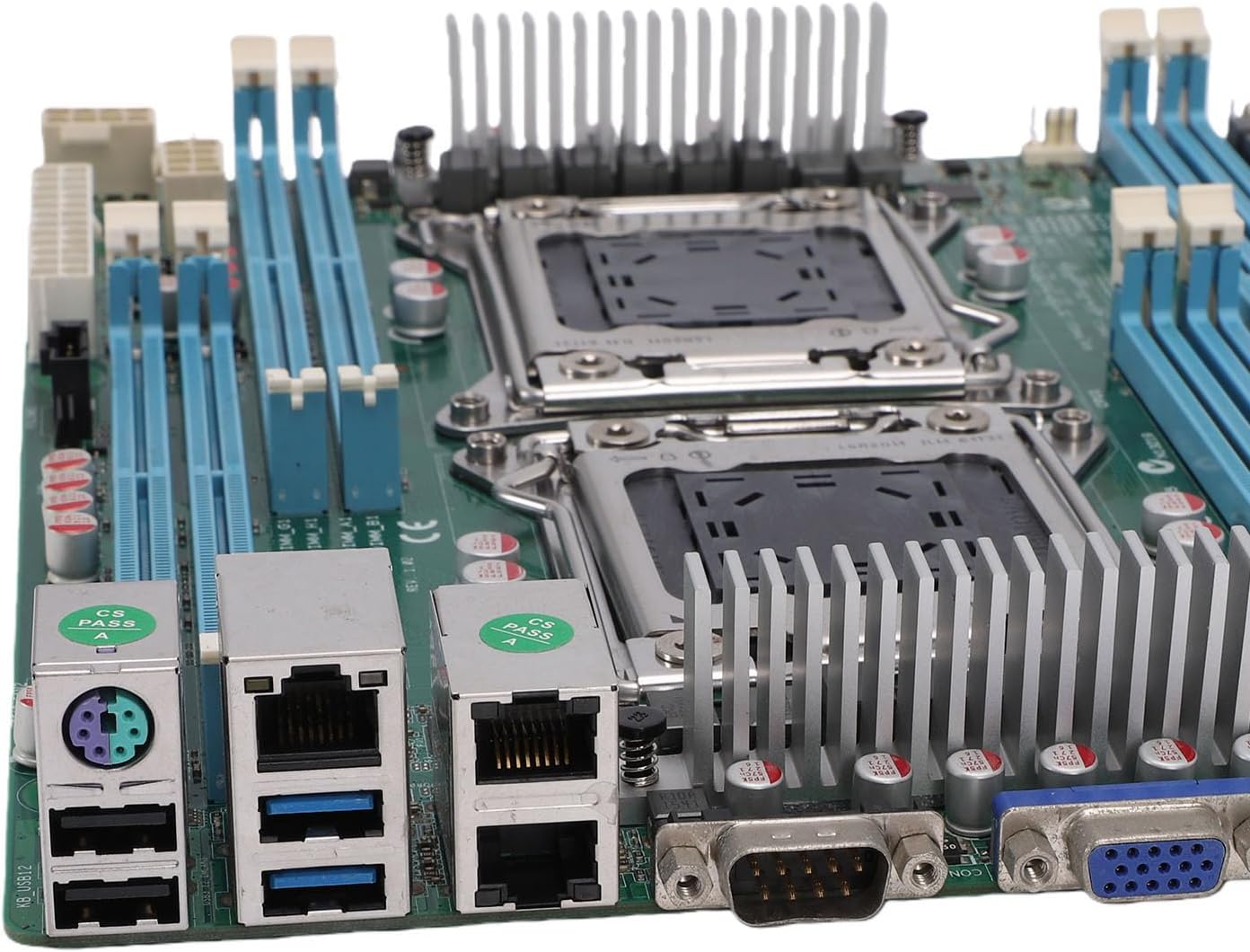

Gugxiom Workstation Motherboard, Dual Socket R LGA 2011 Support for E5 2600 V1 V2 Series, with C602 Chipset 8xDDR3 Slots PCIe 3.0

Spec: Item Type: Motherboard Material: PCB CPU: Dual Socket R (Support for LGA 2011), Support for E5 2600, E5 2600 V2 Series (Up To 135W), Support for 6.4, 7.2, 8.0 GT/s Chipset: Support for C602 A Memory: 8xDDR3 DIMM (4 Channels, 4 Slots Per CPU), Maximum 256GB, Supports RDIMM, UDIMM, LRDIMM, Frequency 1600/1333/1066 MHz Storage: 4xSerial ATA 3Gb/s (Serial ATA II), 2xSerial ATA 6Gb/s (Serial ATA III); Support for RSTe And Support for LSI MegaRAID, 0/1/5/10 Expansion: 2xPCIe 3.0 X16, 3xPCIe 3.0 X8, 1xPCIe 2.0 X8 (X4), 1xPIKE Storage Expansion Slot Networking: Onboard 2x Support for 82574L Gigabit LAN (RJ45) Management: Support for ASMB6 IKVM Remote Management (Optional) Form Factor: ATX 1. Processor Socket: 2x Support for LGA 2011 (Socket R) Support: Support for E5 2600, E5 2600 V2 (32Nm/22Nm, TDP ≤135W) : 6.4, 7.2, 8.0 GT/s Maximum Cores: Up To 20 Cores Per CPU (E.g., E5 2690 V2) 2. Memory Slots: 8xDDR3 DIMM (4 Channels/CPU, 4 Slots/CPU) Capacity: Maximum 32GB Per LRDIMM, 256GB System Maximum Type: ECC RDIMM, UDIMM, LRDIMM (Non ECC Not Supported) Frequency: 1600/1333/1066 MHz (Dependent On CPU) 3. Storage Interface Serial ATA: 4xSerial ATA II (3Gb/s), 2xSerial ATA III (6Gb/s) Redundant Array of Independent Disks: Expansion: Support for PIKE Slot (Support for SAS/Serial ATA Card, PCIe 3.0) 4. Expansion Slots (PCIe) 1xPCIe 3.0 X16 (Auto Switches To X8 If Adjacent X8 Slot Is Occupied) 1xPCIe 3.0 X8 1xPCIe 3.0 X16 (Auto Switches To X8 If Adjacent X8 Slot Is Occupied) 1xPCIe 3.0 X8 1xPCIe 2.0 X8 (X4 Bandwidth) 1xPIKE Storage Expansion Slot (PCIe 3.0) 5. Networking and Management LAN: 2x Support for 82574L PCIe Gigabit Ethernet (RJ45) Remote Management: Support for ASMB6 IKVM (Optional, Supports IPMI 2.0, KVM Over IP, Virtual Media) 6. I/O Ports (Rear) Network: (2x Gigabit LAN and 1x Management Port) USB: 2xUSB 3.0,

• High Stability and Professional Load Support: Support for E5 series processors with the support for X79 chipset, ensuring high stability, excellent multi computing capabilities, and strong support for professional workloads.
• Efficient Dual CPU Interconnect: Utilizes the support for C602 chipset to provide high speed interconnection between dual CPUs, ensuring optimal memory bandwidth and I/O throughput, effectively avoiding performance bottlenecks typical of single platforms.
• True Multi Core Parallel Computing: Supports dual E5 2600 v1/v2 processors, delivering genuine multi core parallel computing power, with up to 32 cores and 64 threads in a single system for maximum performance.
• Flexible Expansion Options: Equipped with multiple PCIe 3.0 slots, allowing flexible configurations of multiple GPUs, high speed , catering to professional needs such as AI training and storage arrays.
• Optimized For High Concurrency Scenarios: Specifically optimized for AI video processing and streaming media transcoding, the motherboard reliably operates multiple professional GPUs, making it suitable for virtualization, database services, and scientific computing.
